| Switching capacity | 68 Gbit/s |
| Packet forwarding rate | 51 Mpps |

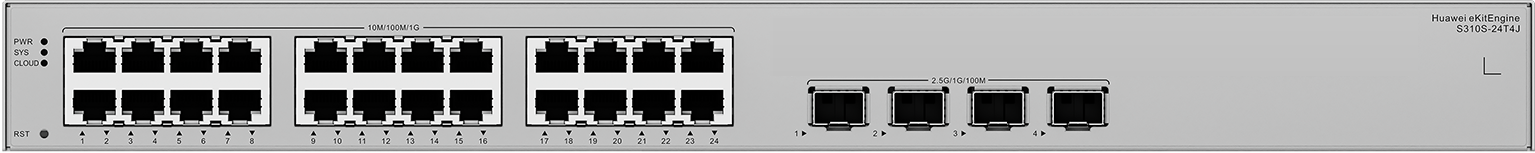

| GE RJ45 | 24
(1G/100M/10M) |
| 2.5G SFP | 4
(2.5G/1G/100M) |
| Certification | EMC certification
Safety certification
Manufacturing certification |
| Chassis material | Metal |
| Static power consumption [W] | 11.14 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442 mm x 160 mm (1.72 in. x 17.40 in. x 6.30 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442 mm x 167 mm (1.72 in. x 17.40 in. x 6.57 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 550.0 mm x 260.0 mm (3.54 in. x 21.65 in. x 10.24 in.) |
| Installation type | Rack mounting,Desk mounting,Wall mounting |
| Weight without packaging [kg(lb)] | 1.97 (4.34) |
| Weight with packaging [kg(lb)] | 2.76 kg (6.08 lb) |
| Typical power consumption [W] | 21.32 |
| Maximum power consumption [W] | 21.9 |
| Long-term operating temperature [°C(°F)] | –5°C to +40°C (23°F to 104°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |

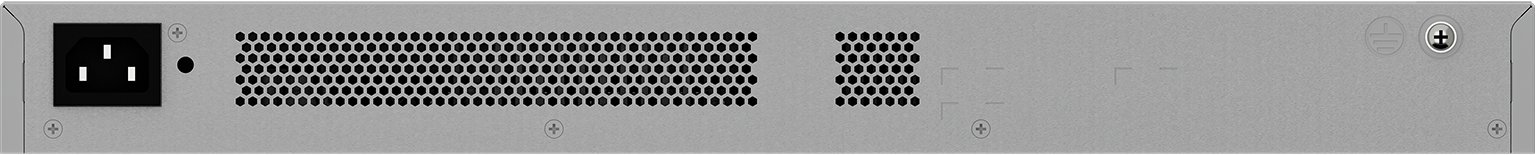

| Power supply mode | AC built-in |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Power supply surge protection [kV] | ±4 kV in differential mode and ±4 kV in common mode |
| Heat dissipation mode | Natural heat dissipation |

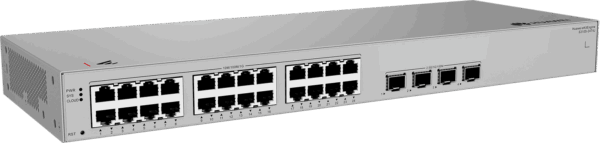

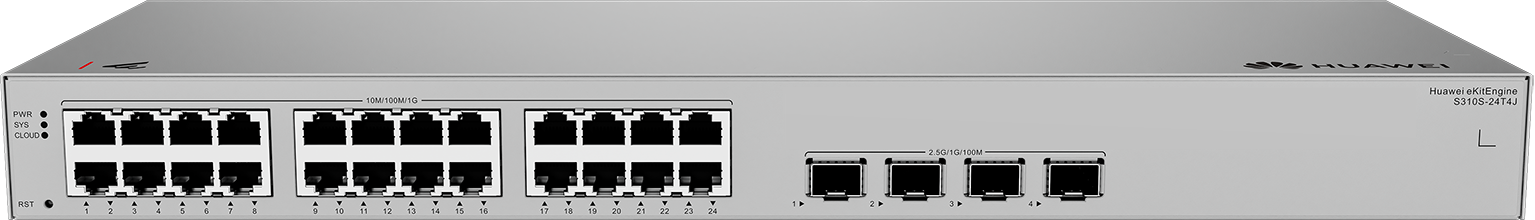

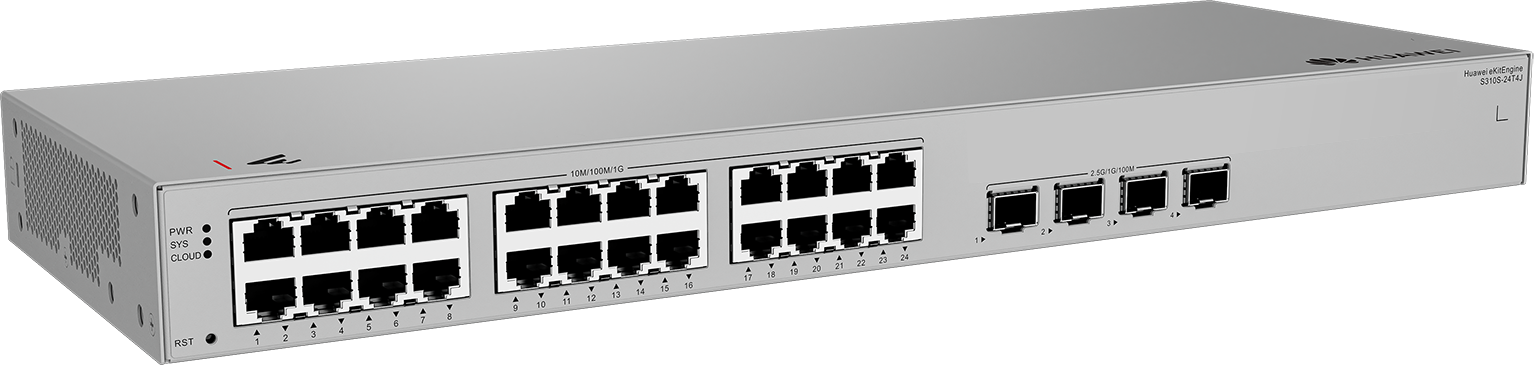

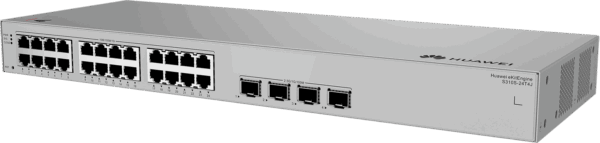

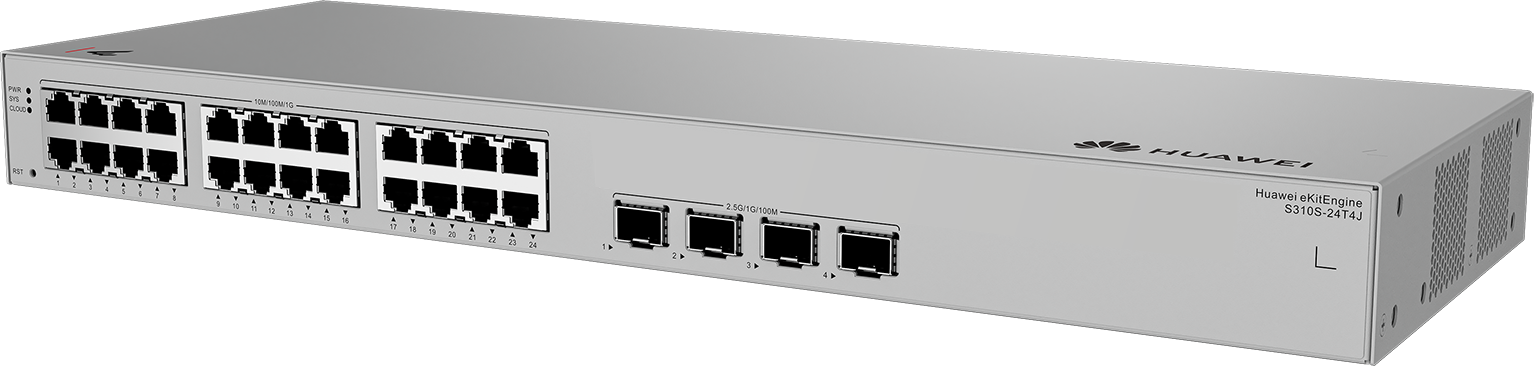

S310S-24T4J
