| Switching capacity | 24 Gbit/s |
| Packet forwarding rate | 18 Mpps |
| GE RJ45 | 8
(1G/100M/10M) |
| GE SFP | 4
(1G) |
| Certification | EMC certification
Safety certification
Manufacturing certification |
| Chassis material | Metal |
| Static power consumption [W] | 10.52 |
| Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.84 in. x 7.09 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250.0 mm x 187.0 mm (1.72 in. x 9.84 in. x 7.36 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 370.0 mm x 380.0 mm (3.54 in. x 14.57 in. x 14.96 in.) |
| Installation type | Rack mounting,Desk mounting,Wall mounting |
| Weight without packaging [kg(lb)] | 1.41 kg (3.11 lb) |
| Weight with packaging [kg(lb)] | 2.22 kg (4.89 lb) |
| Typical power consumption [W] | 15.95 |
| Maximum power consumption [W] | 21.52 |
| Number of fans modules | 1 |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Power supply mode | AC built-in |
| Input voltage range [V] | AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz |
| Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |

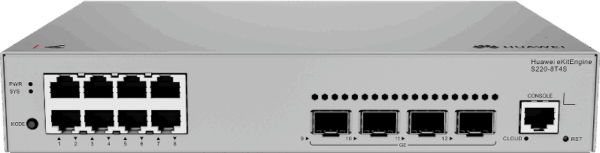

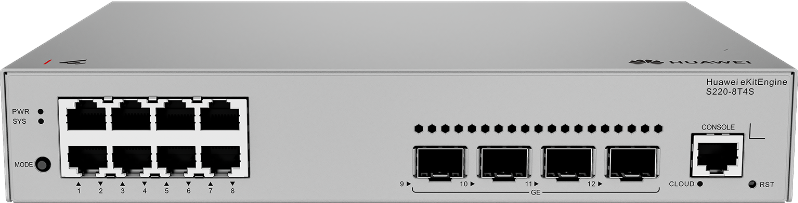

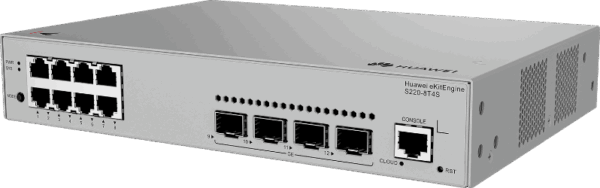

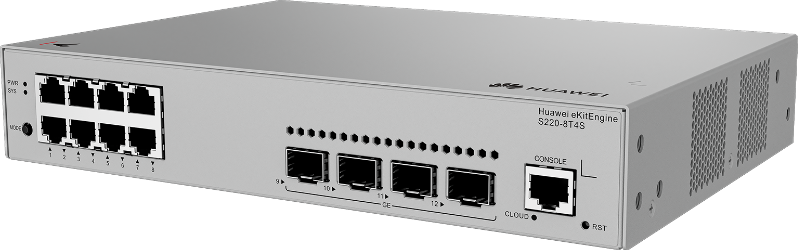

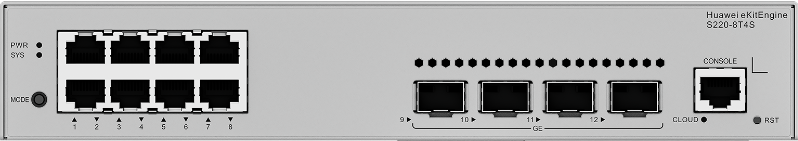

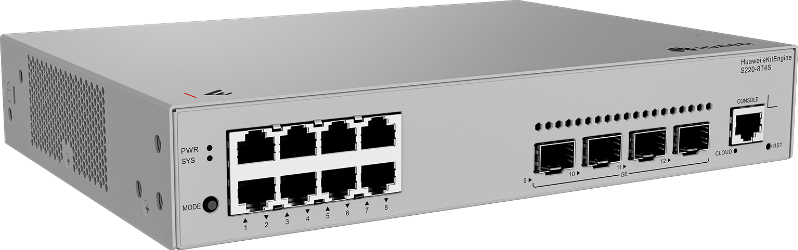

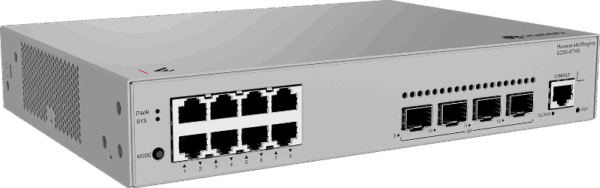

S220-8T4S
