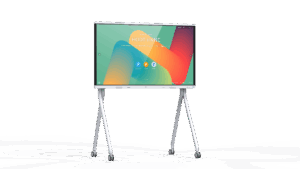

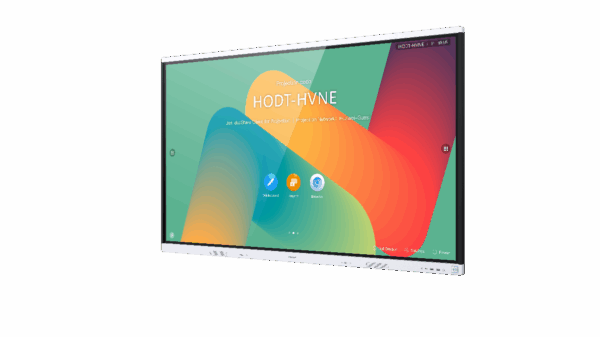

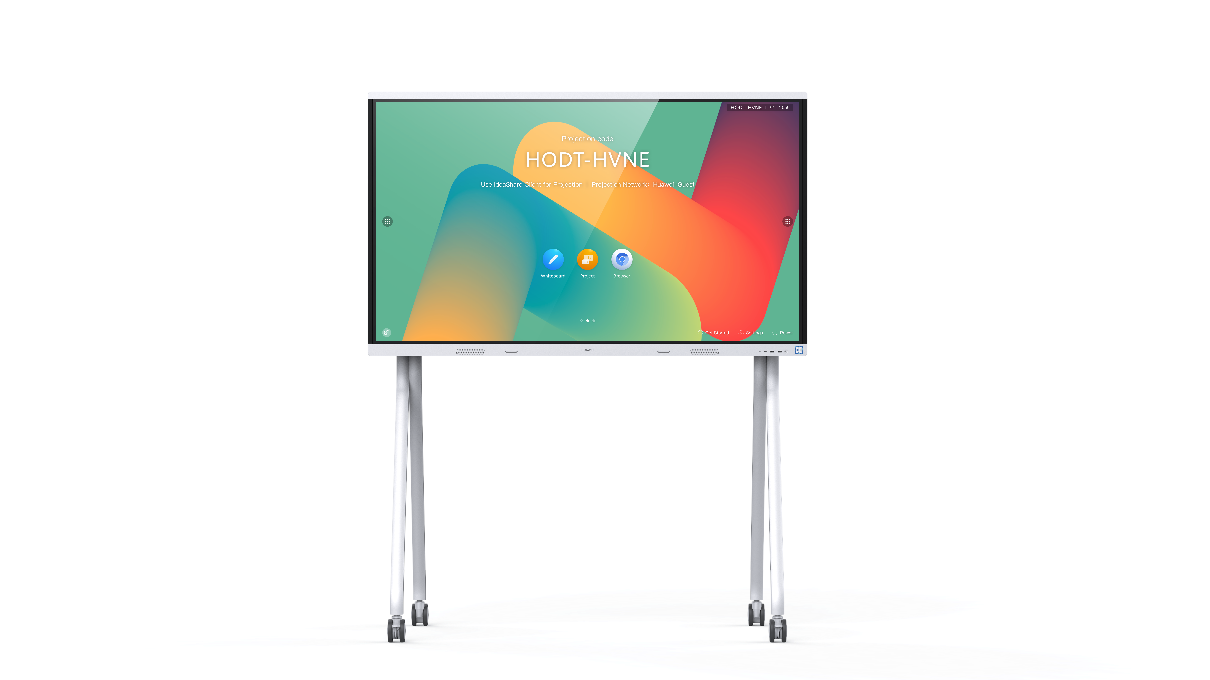

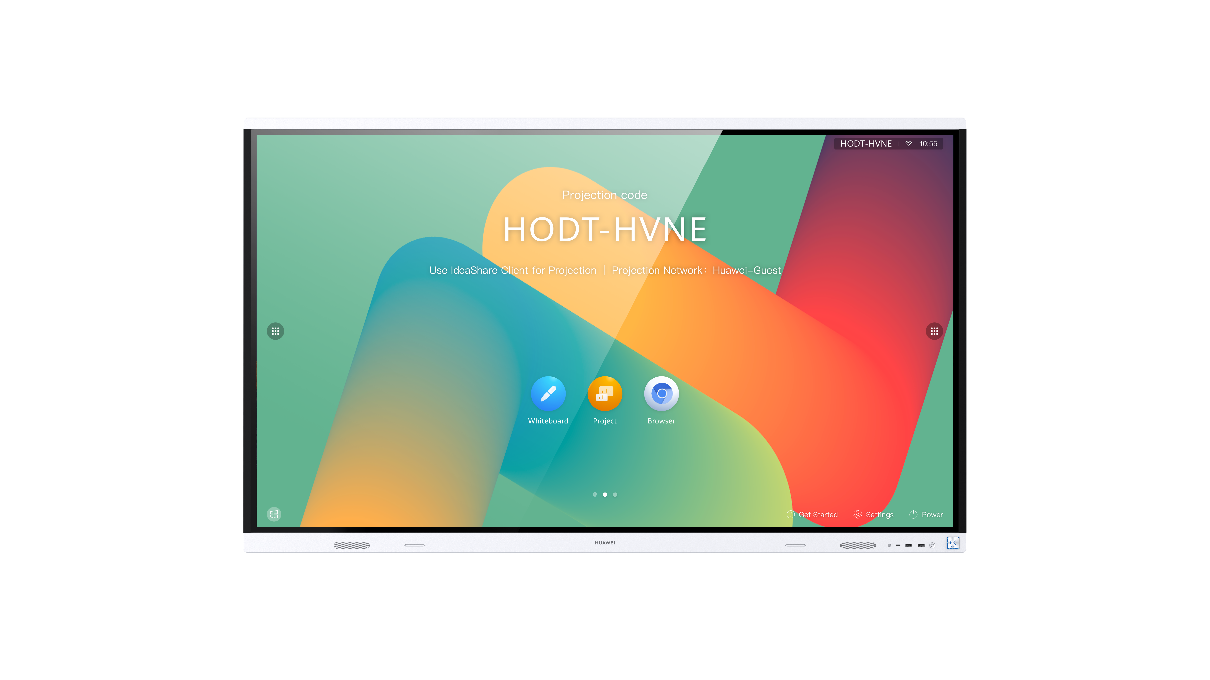

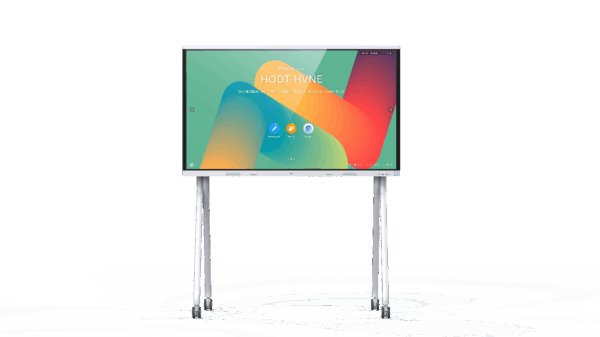

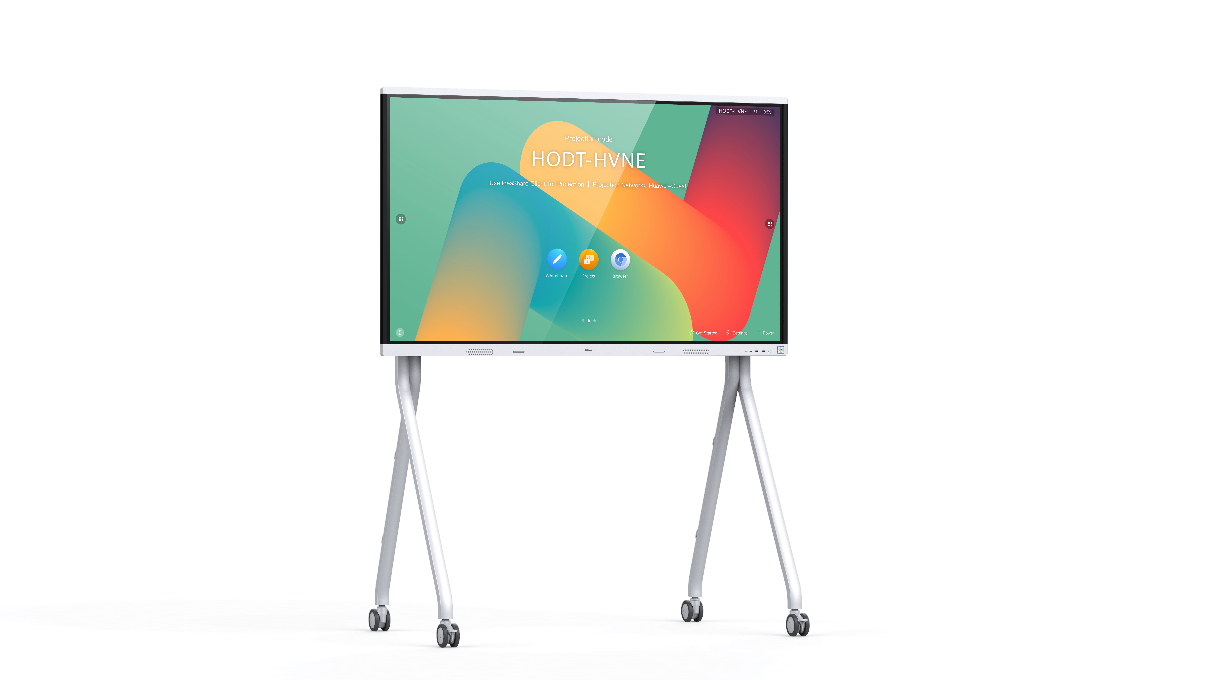

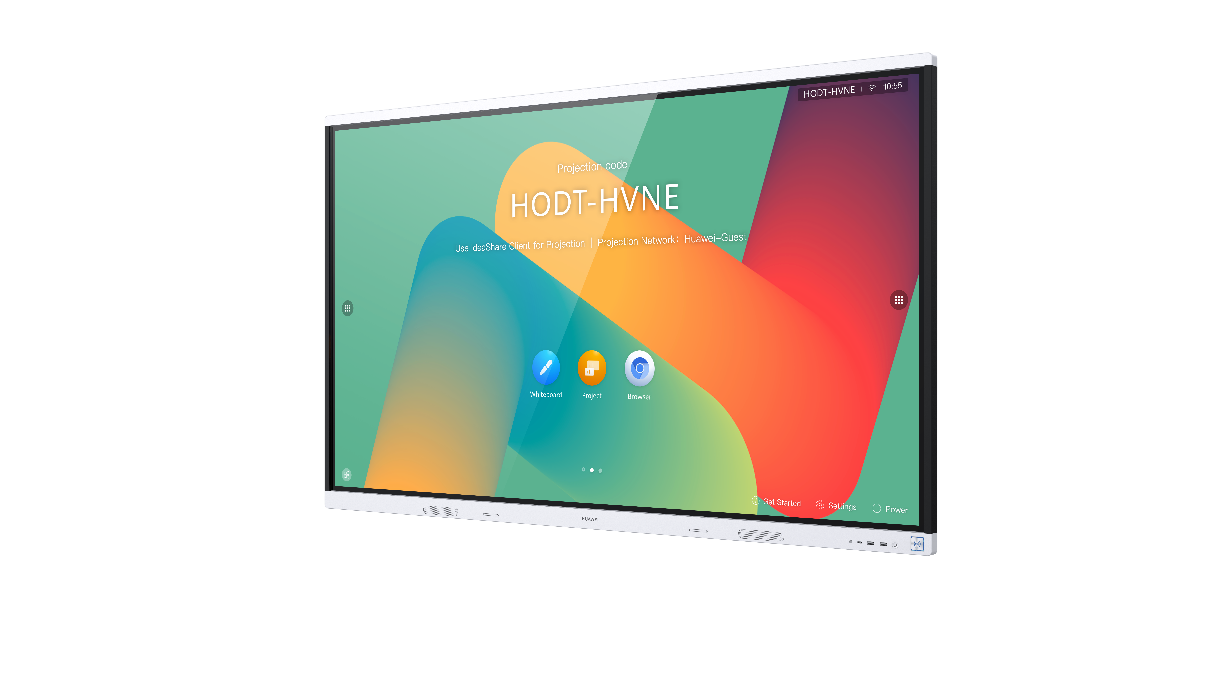

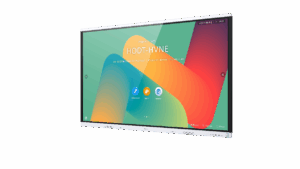

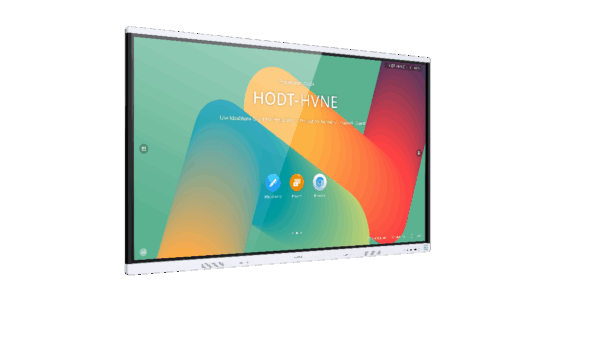

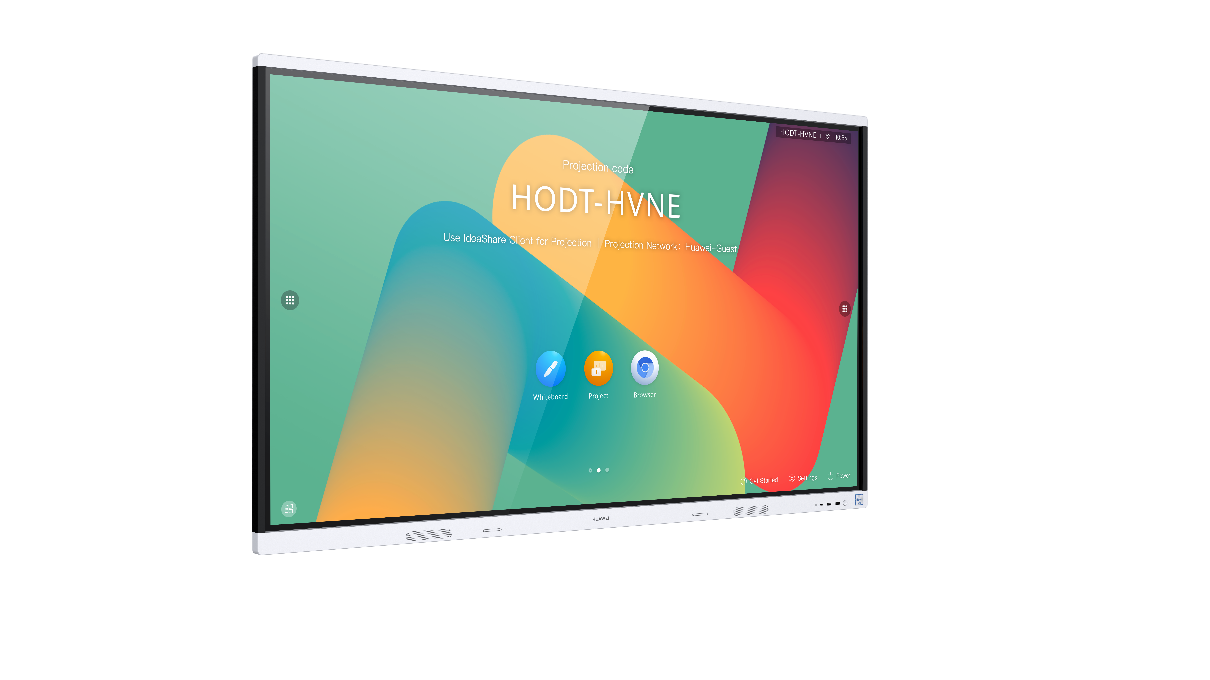

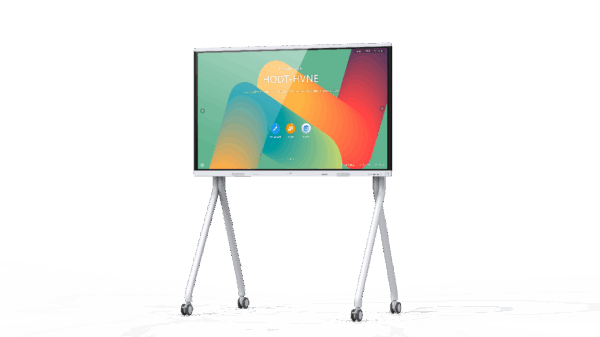

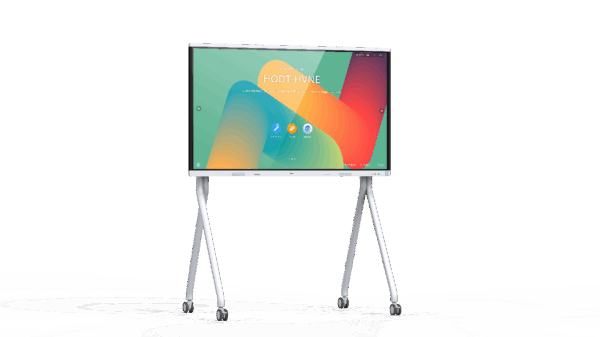

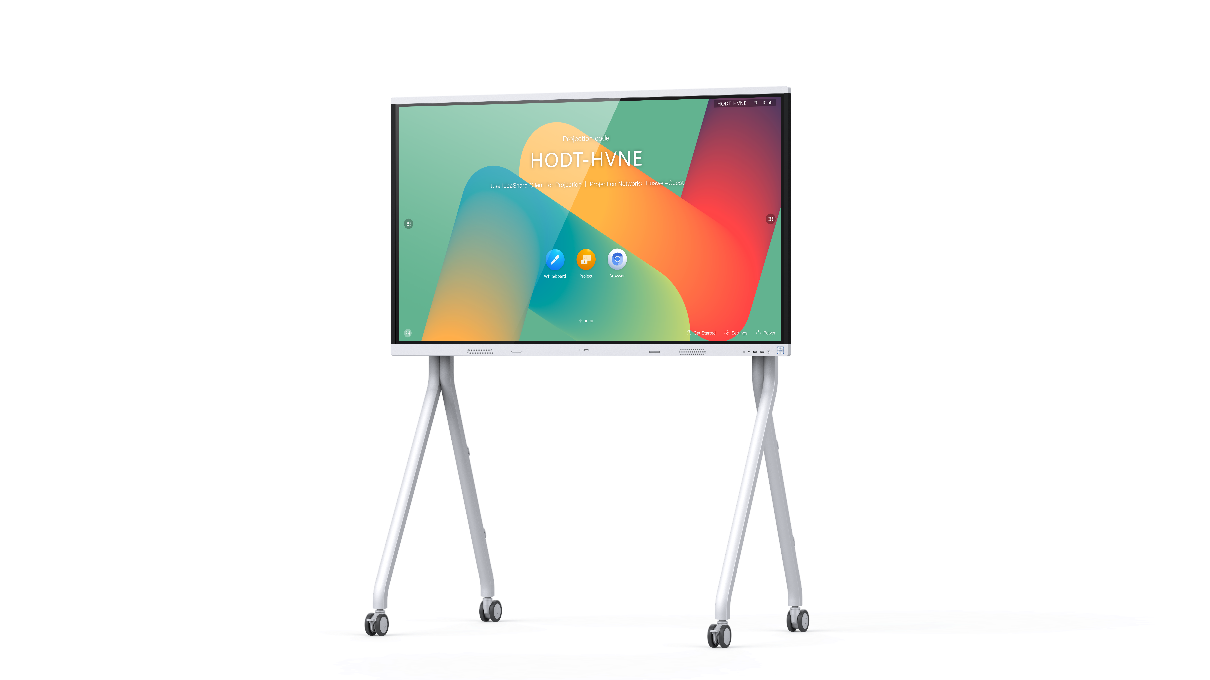

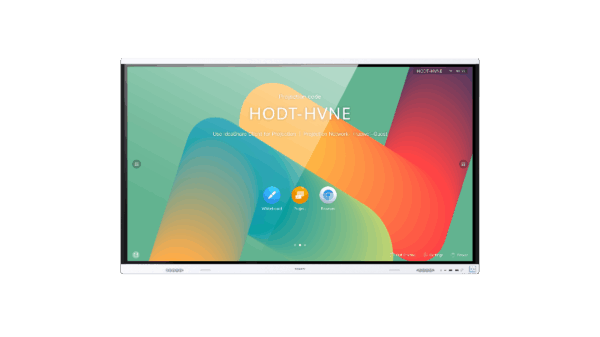

| Product name | IdeaHub Board 2 |
| Product model | IHB2-65SU |
| Product dimensions(H x W x D) | 892.5mm*1484.5mm*91.6mm |
| Package dimensions (H x W x D) | 1050mm*1650mm*220 mm |
| Net/Gross weight (including the package) | 35.0 kg/42.5 kg |
| OPS | Optional |
| Resolution | 4K (3840 x 2160 pixels) |
| Backlight type | D-LED |
| Screen Lamination | Zero-gap bonding |
| Latency | ≤ 25 ms |
| Touch sensing distance | 1.5mm |
| Speaker frequency domain | 100 Hz to 20 kHz |
| Number of speaker units | 4 |
| Speaker total power | 30 W |
| CPU | 4-core |
| RAM | 4 GB |
| Flash | 32 GB |
| OS | Android 9.0; Windows 10 (OPS required) |
| Wi-Fi module | Wi-Fi 5 |
| Wi-Fi frequency | 2.4 GHz + 5 GHz |
| NFC | √ |
| Port | Front-panel ports : USB Type-C x 1/USB Type-A 3.0 x 2 Side-panel ports : USB Type-A 3.0 x 1 /USB Type-B x 1 /HDMI (input) x 2/HDMI (output) x 1/COM port x 1/RJ45 network port x 1/80-pin OPS port x 1/3.5 mm (line-in) x 1/3.5 mm (line-out) x 1 |
