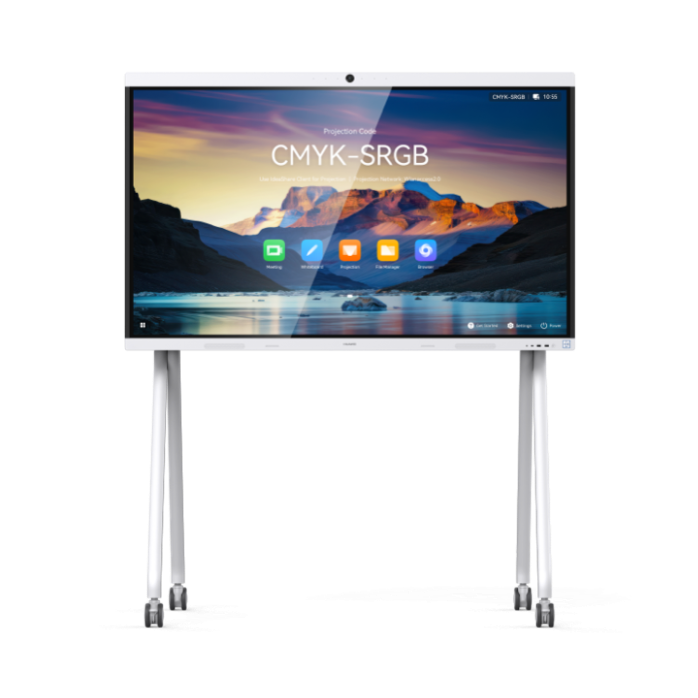

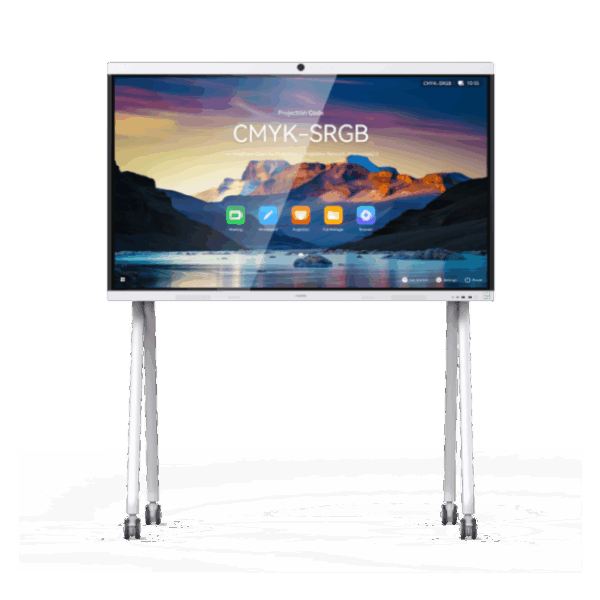

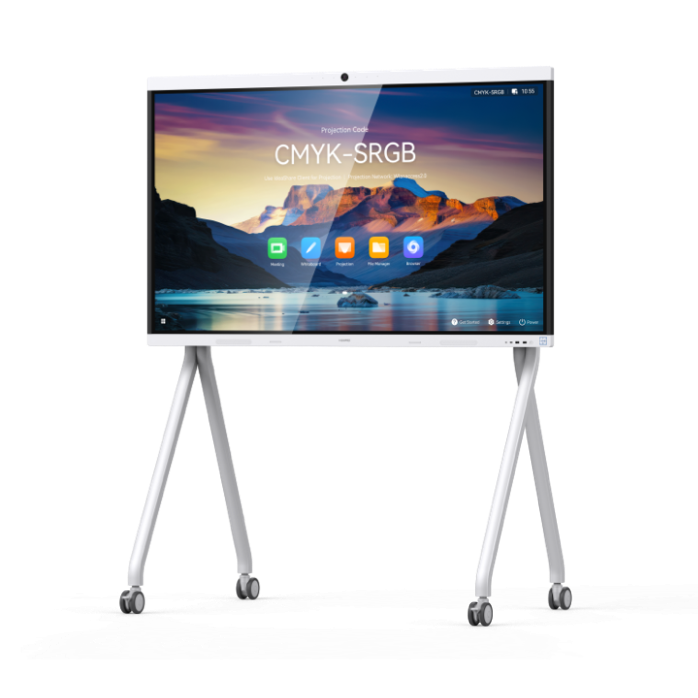

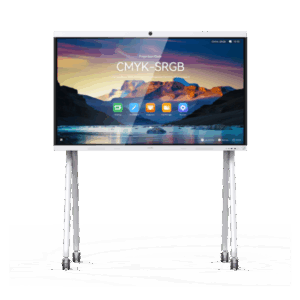

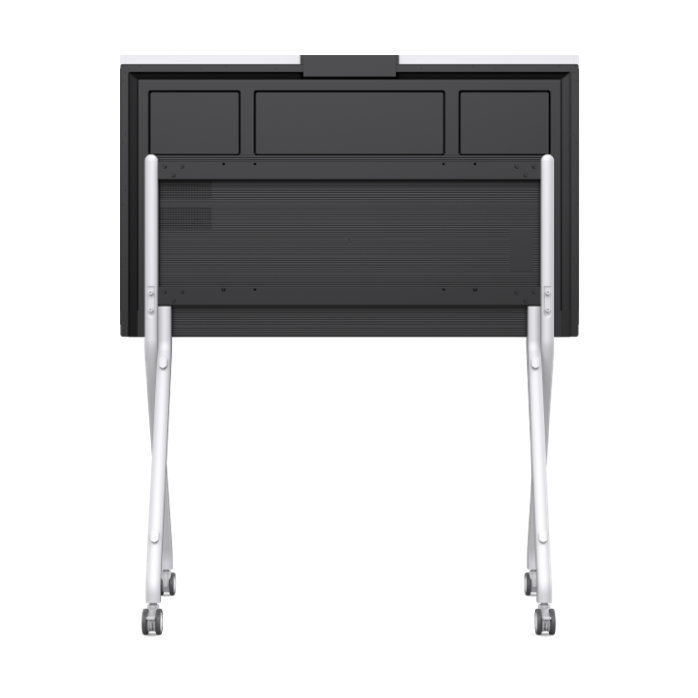

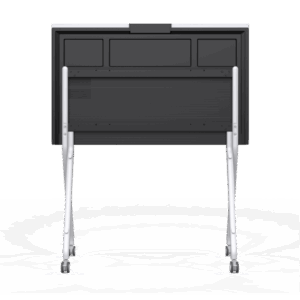

| Product name | IdeaHub B3
|
| Product model | 75": IHB3-75SA
|

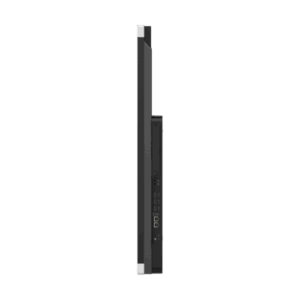

| Product dimensions(H x W x D) | 75": 1040.5 mm x 1705.7 mm x 91.8 mm
|
| Package dimensions (H x W x D) | 75": 1170 mm x 1900 mm x 220 mm
|
| Net/Gross weight (including the package) | 75": 47.8 kg/57.8 kg
|
| OPS | Optional |
| Resolution | 4K |
| Backlight type | D-LED |
| Screen Lamination | Zero-gap bonding |
| Latency | 16 ms |
| Touch sensing distance | ≤ 1.5 mm |
| Resolution | 4K |
| Lens cap for privacy protection | × |
| Horizontal FoV | 80° |
| TV distortion | ＜2% |
| Speaker frequency domain | 100 Hz to 20 kHz |
| Number of speaker units | 4 |
| Speaker total power | 30W
|
| Sound pickup angle | 180° |
| Sound pickup distance | 10m |
| Microphone frequency domain | 100 Hz to 20 kHz |
| Quantity of Microphone | 6 |
| Native meeting apps | Huawei Cloud Meeting and WeLink |
| Dual streams (audio/video + data sharing) | 1080p30fps+1080p15fps/4K3fps |
| BYOM | √ |
| Auto-Framing | √ |
| Intelligent tracking | √ |
| Acoustic baffle | √ |
| CPU | 8-core |
| RAM | 8 GB |
| Flash | 64 GB |
| OS | HarmonyOS, Windows (OPS required) |
| Wi-Fi module | Wi-Fi 6 |
| Wi-Fi frequency | 2.4 GHz + 5 GHz |
| NFC | √ |

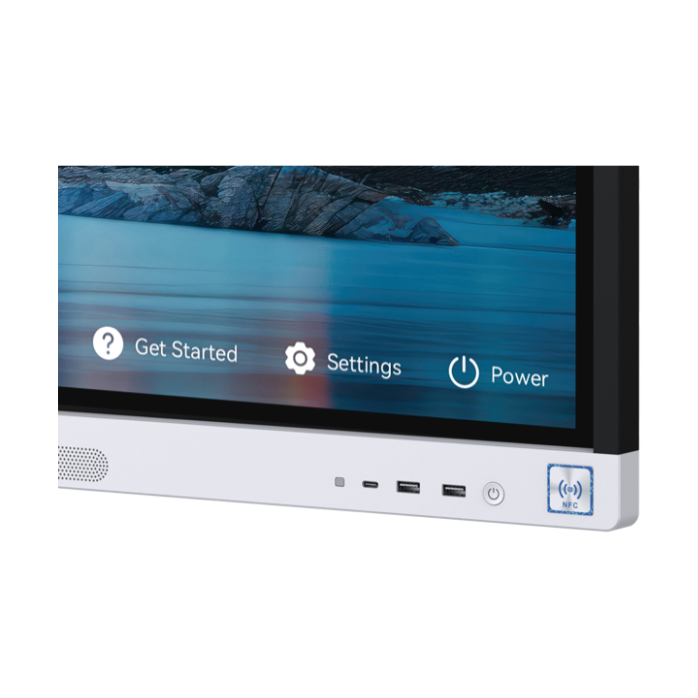

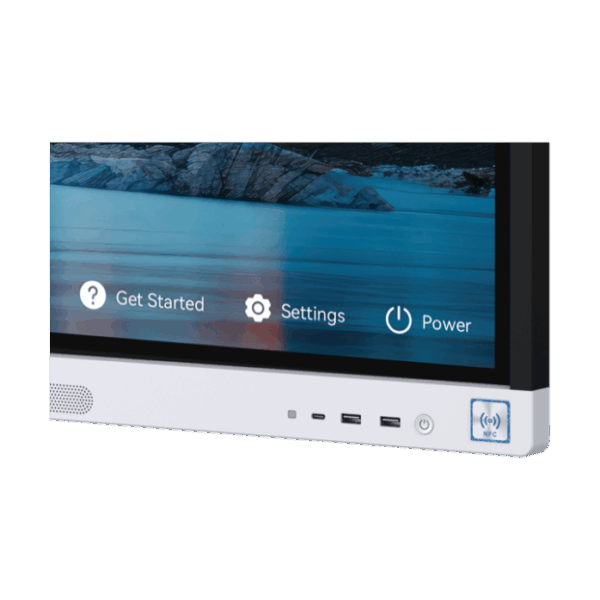

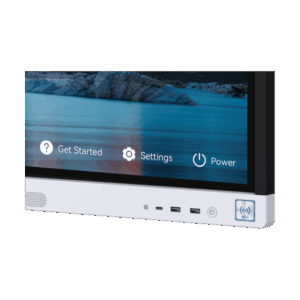

| Port | Front-panel ports: 1 x Type-C/2 x USB 3.0
Side-panel ports: 1 x 3.5mm LINE IN/1 x 3.5mm LINE OUT
2 x HDMI IN/1 x HDMI OUT
1 x USB 3.0
1 x RJ45 (10/100/1000 Mbit/s LAN)
1 x COM port |
IdeaHub B3-75
