| NNI | GPON |

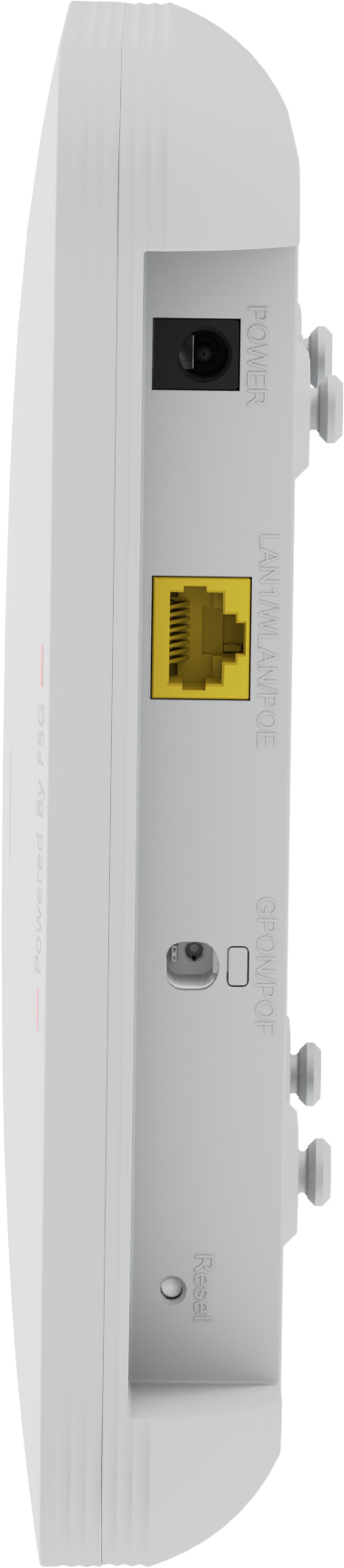

| UNI | 1*GE + 2.4 GHz & 5 GHz Wi-Fi 6 |
| Power supply | 12 V DC, 1.5 A (power obtained through adapter) or 56 V DC, 0.25 A (POF* power supply） |
| Operating ambient temperature | -10 °C -+50 °C |

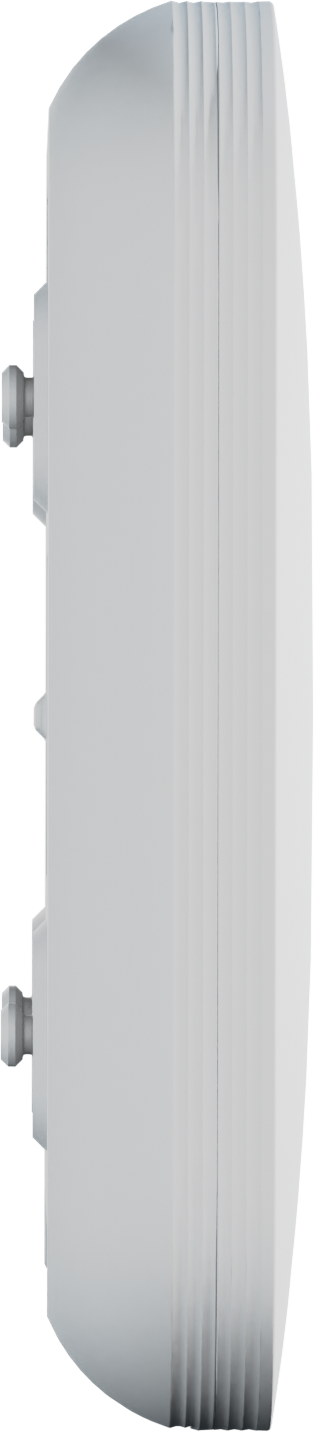

| Dimensions (H x W x D) | 38 mm x 200 mm x 200 mm |
| Weight | About 600 g |
| Number of Access Terminals | 64 |
| Wi-Fi roaming | ≤50ms |

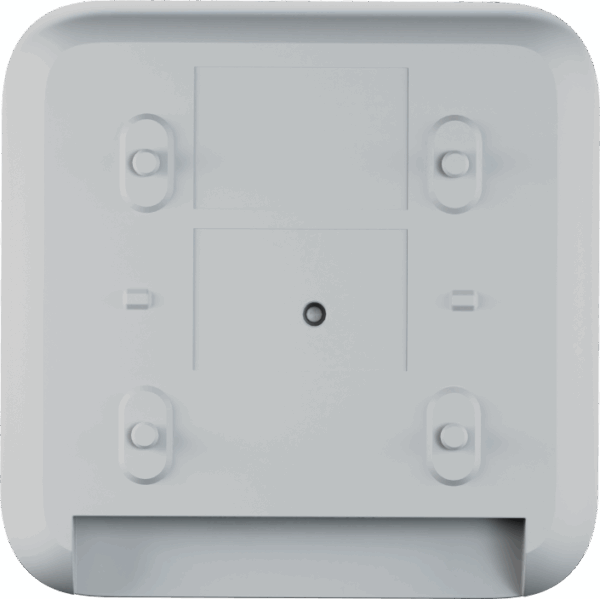

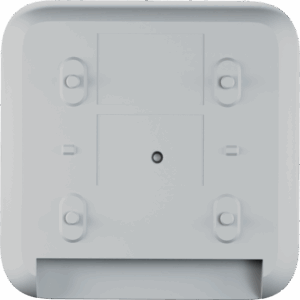

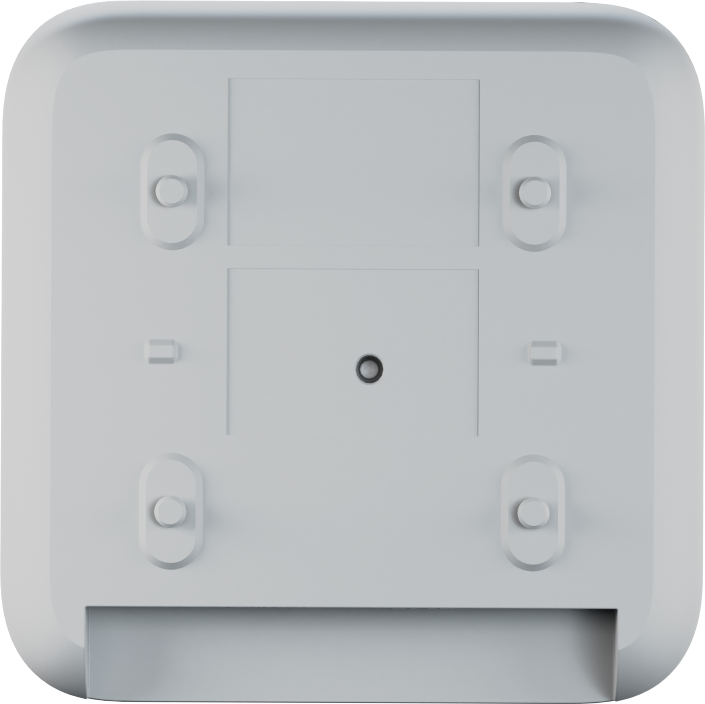

| Installation mode | Ceiling-mounted installation |
| Supported protocol | IEEE 802.11 ax (2.4GHz&5GHz) |
| MIMO | 2 x 2 MIMO (2.4 GHz & 5 GHz) |
| Frequency band | 20/40/80/160 MHz |
| Others | 1024-QAM, WPA3, DL MU MIMO |
| Air interface rate | 574 Mbps (2.4 GHz) 2402 Mbps (5 GHz) |
| File Name | Type | Language | Updated | |
|---|---|---|---|---|
| F600C-30-1GH Quick Start | Quick Start | en | 2025-07-28 10:08:42 | Download |
| F600C Installation Guide (Ceiling-Mounted Scenario) | Installation Guide (Multimedia) | en | 2025-06-27 11:46:10 | Download |
| F600C-30-1GH Quick Start | Quick Start | en | 2025-06-14 17:42:16 | Download |
