| Model | eKitStor Xtreme 200E |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen 4.0 x4， NVMe 2.0 |
| Feature | PCIe Gen 4 interface with up to 4 lanes
Compliant with NVMe Revision 2.0
Support for Host Memory Buffer (HMB), S.M.A.R.T |
| Capacity | 512GB/1TB |
| Sequential Read (Max. MB/s) | 6600/7000 |
| Sequential Write (Max. MB/s) | 3400/6500 |
| Random Read 4K (Max. IOPS) | 500K/900K |
| Random Write 4K (Max. IOPS) | 800K/1000K |
| Active (Max. RMS) - Read | 5.50W/5.50W |
| Active (Max. RMS) - Write | 4.50W/4.50W |
| L1.2 | 3mW |
| Reliability | 1,500,000 hours |
| Total Bytes Written (TBW) | 200TB/400TB |
| Temperature (Operating) | 0°C to 70°C |
| Temperature (Non-operating) | –40°C to 85°C |
| Humidity | 5% to 95%, non-condensing |
| Vibration (Non-operating) | 20~2000Hz, 20G |
| Shock (Non-operating) | 1,500 G @ 0.5 ms half sine |
| Height (mm) | Max. 2.70 |
| Width (mm) | 22.00±0.15 |
| Length (mm) | 80.00±0.15 |
| Weight (g) | Max. 8 |
| Certification | RoHS, CE, WEEE, and VCCI |
| Notes | 1. 1 GB = 1 billion bytes; 1 TB = 1 trillion bytes Actual user capacity may be less depending on the operating system.
2. 1 MB/s = 1 million bytes per second.
3. Test conditions: Performance tests are based on the CrystalDiskMark 7.0.0 benchmark using Intel Ultra 7 16-core processor, 32 GB DDR4 memory, and Windows 11 x64 operating system. Based on internal testing, performance may vary depending on the host device, usage conditions, disk capacity, and other factors. |

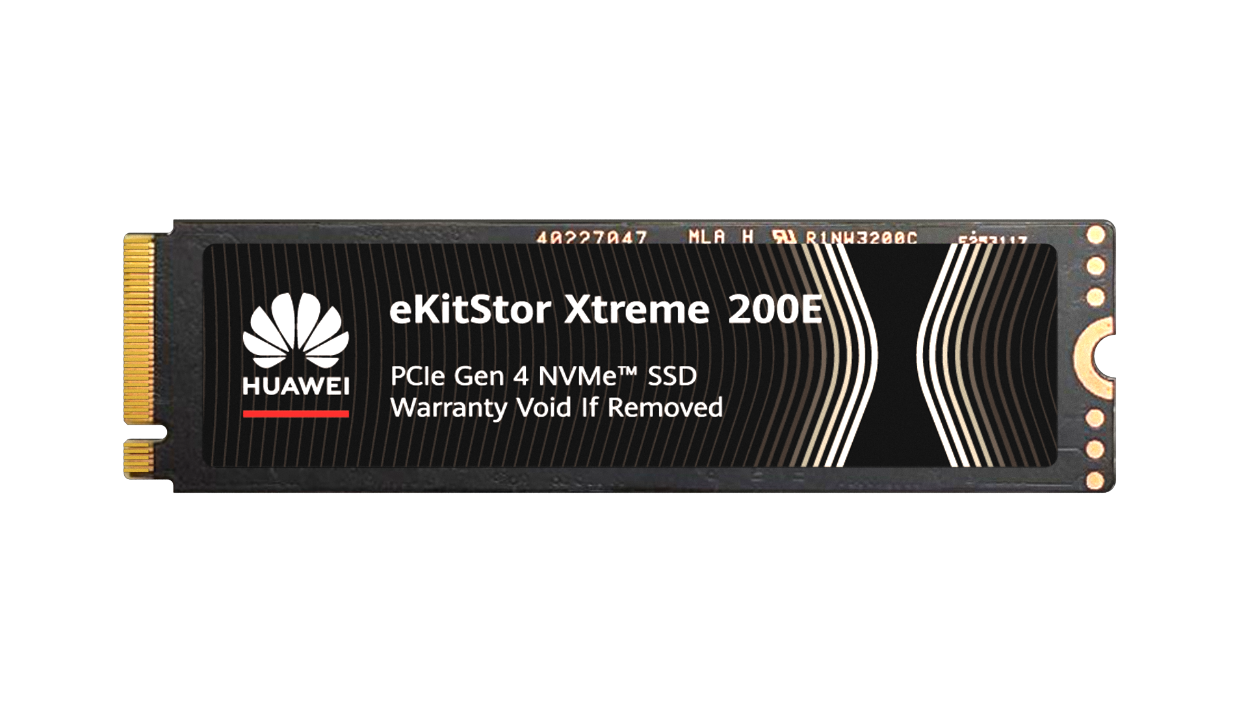

eKitStor Xtreme 200E
