| Forwarding performance: | 9 Mpps to 25 Mpps |
| Number of connected terminals | 700 |
| Installation type | Rack,Work bench,Against the wall |
| Dimensions without packaging (H x W x D) [mm(in.)] | - Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 220.4 mm (1.75 in. x 17.4 in. x 8.68 in.)
- Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 225.2 mm (1.75 in. x 17.4 in. x 8.87 in.) |
| Chassis height [U] | 1 |
| Dimensions with packaging (H x W x D) [mm(in.)] | 90 mm x 570 mm x 390 mm (3.54 in. x 22.44 in. x 15.35 in.) |
| Weight with packaging [kg(lb)] | 4.6 (10.12) |
| Weight without packaging [kg(lb)] | 3.2 (7.04) |
| RTC | Supported |
| Typical power consumption [W] | 28 |
| Maximum power consumption [W] | 33 |
| Power supply mode | AC built-in |
| Number of power modules | 1 |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum output power [W] | 70 |
| Safety regulation certification | IEC/EN/UL 60950-1
IEC/EN/UL 62368-1
GB 4943.1 |
| EMC certification | EN 55032
EN 55035
CISPR 32
GB 9254
EN 55024
CISPR 24
GB/T 17618
EN 300 386
VCCI-CISPR 32
AS/NZS CISPR32
IEC 61000-3-2/EN 61000-3-2
IEC 61000-3-3/EN 61000-3-3 |
| Types of fans | Built-in |
| Number of fan modules | 1 |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F)
Note: When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| LAN ports | 8 x GE electrical interfaces |
| WAN ports | 2 x GE combo |
| Airflow | Left-to-right airflow |
| Environmental standards compliance | RoHS
REACH
WEEE |

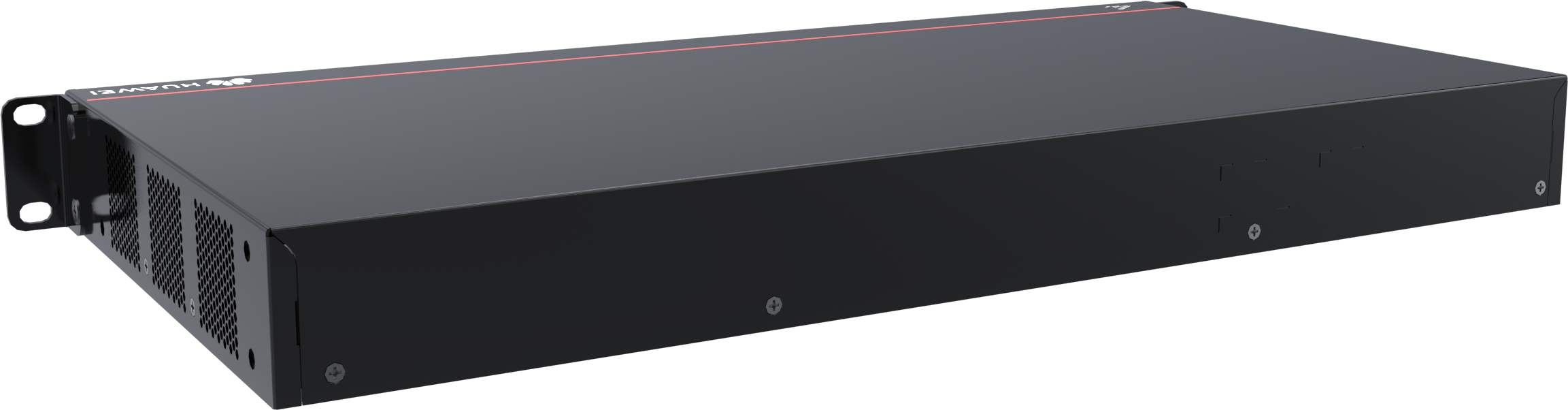

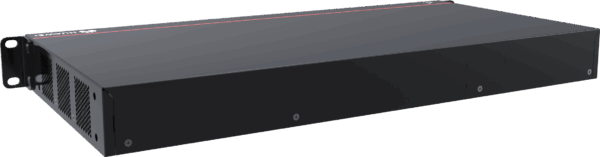

AR720
