| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax/be
5 GHz:802.11a/n/ac/ac Wave 2/ax/be |

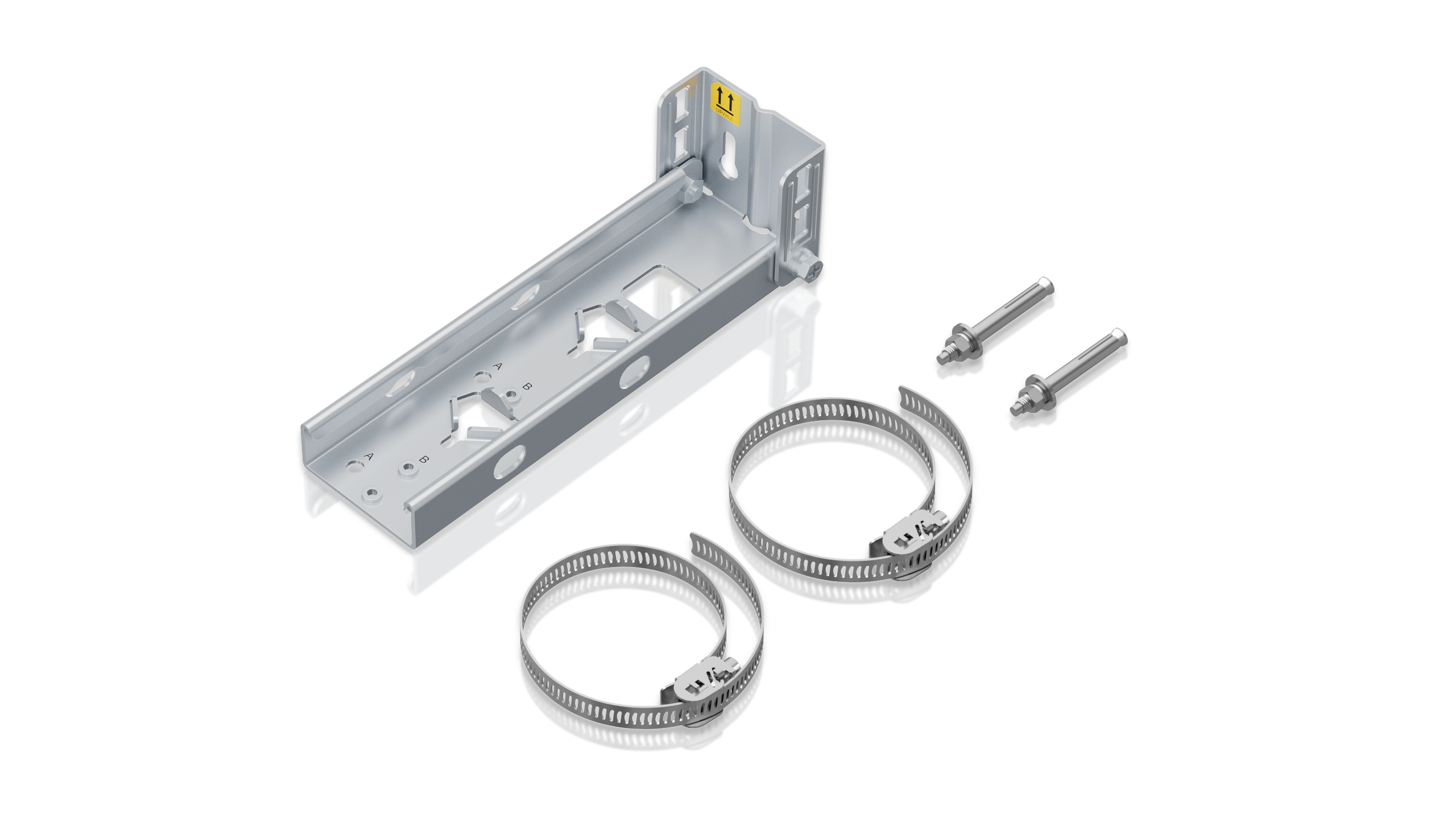

| Installation Type | Wall,Pole |
| Optimal Signal Distance (m) | 140 |
| Max Number of Access Users | 1024 |
| Recommended Number of Access Users | 130 |
| Device Rate | 6.45 Gbps |

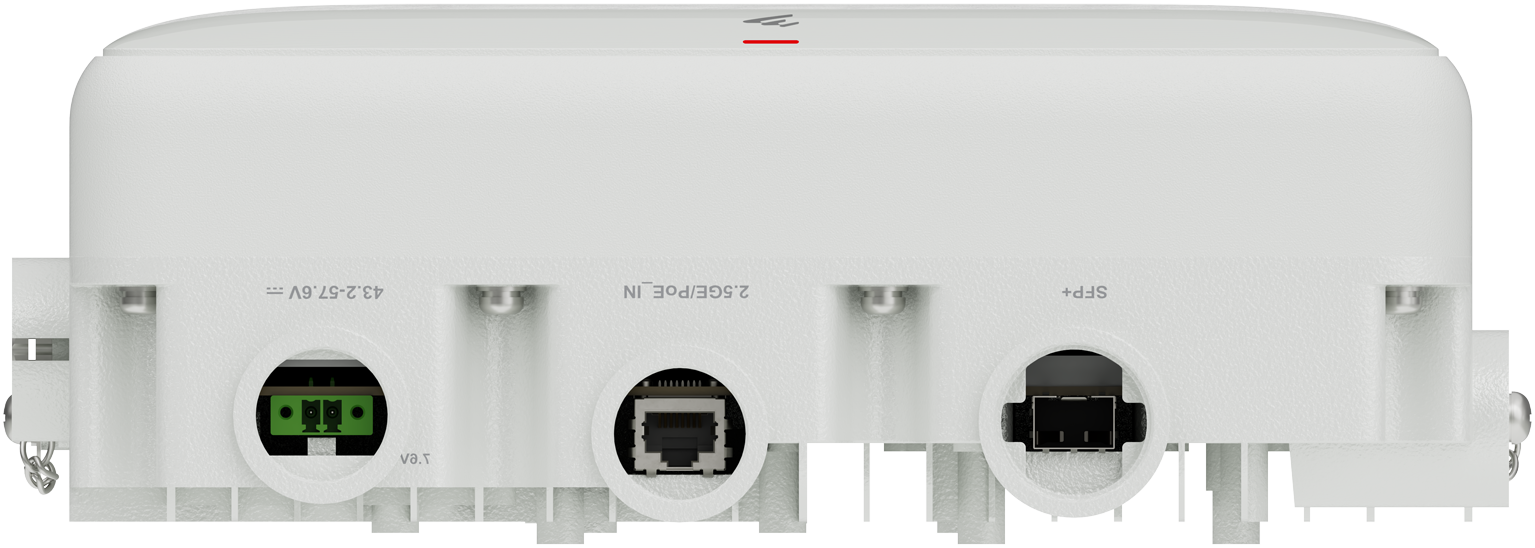

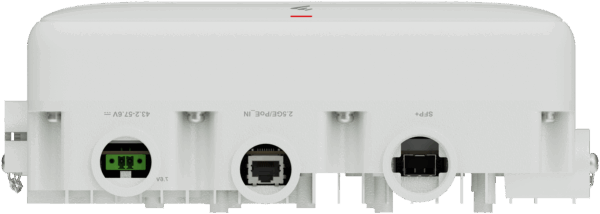

| Maximum number of physical ports on the entire device | 2.5GE (RJ45) x 1, 100M/1000M/2500M auto-sensing
10GE optical (SFP+), GE/2.5GE/10GE auto-sensing |
| Radio number | 2 |
| Maximum channel bandwidth [MHz] | Radio 0 (2.4 GHz): 40 MHz
Radio 1 (5 GHz): 160 MHz |
| Maximum transmit power | 2.4 GHz:
25 dBm/chain
28 dBm (combined power)
5 GHz:
24 dBm/chain
30 dBm (combined power) |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2
Radio 1 (5 GHz): 4x4 |
| Maximum power consumption [W] | 20.4 (excluding USB) |
| Input voltage range [V] | DC: 43.2 V to 57.6 V
PoE: 802.3bt/at/af |
| Dimensions without packaging (H x W x D) [mm(in.)] | 92 mm x 250 mm x 220 mm (3.62 in. x 9.84 in. x 8.66 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 185 mm x 555 mm x 370 mm (7.28 in. x 21.85 in. x 14.57 in.) |
| Weight without packaging [kg(lb)] | 2.89 kg (6.37 lb) |
| Weight with packaging [kg(lb)] | 5.42 kg (11.95 lb) |
| Long-term operating temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Long-term operating relative humidity [RH] | Operating humidity: 0% RH to 100% RH
Storage humidity: 5% RH to 95% RH (non-condensing) |
| Radio interface | Built-in omnidirectional antennas |
| Antenna gain | 2.4 GHz:
5 dBi/chain (peak value)
3 dBi (combined gain)
5 GHz:
5 dBi/chain (peak value)
3 dBi (combined gain) |
| Operating frequency band | 2.4GHz,5GHz |
| Ingress protection level (dustproof/waterproof) | IP68 |

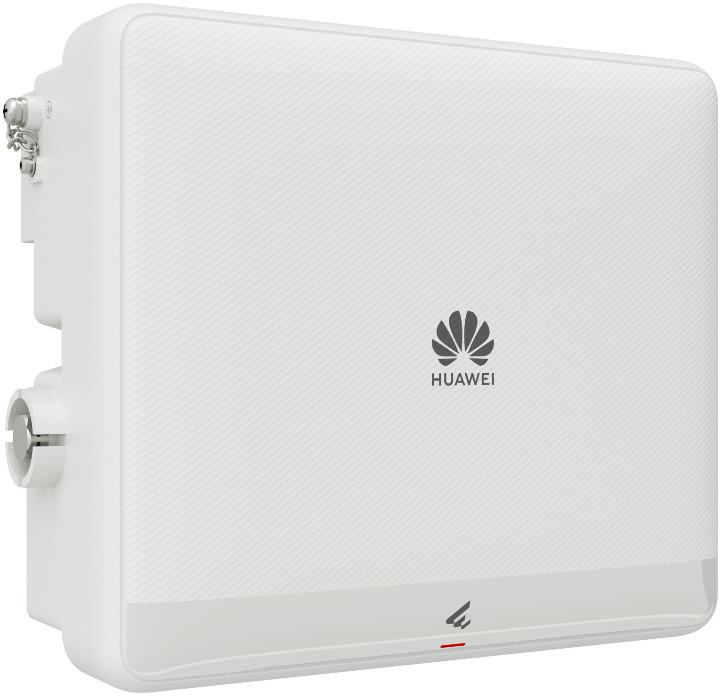

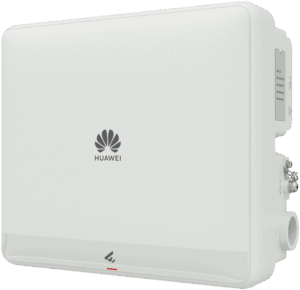

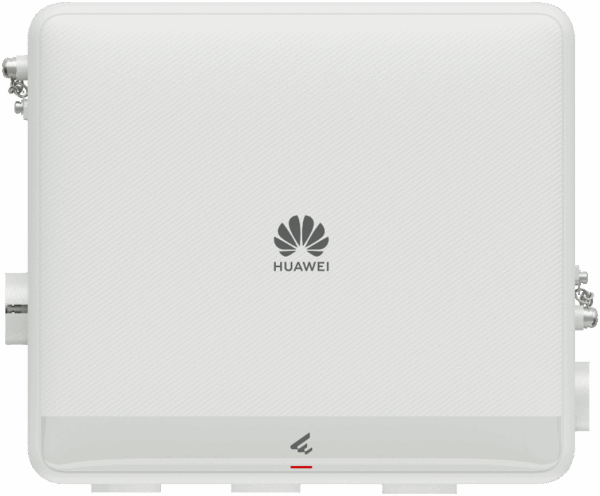

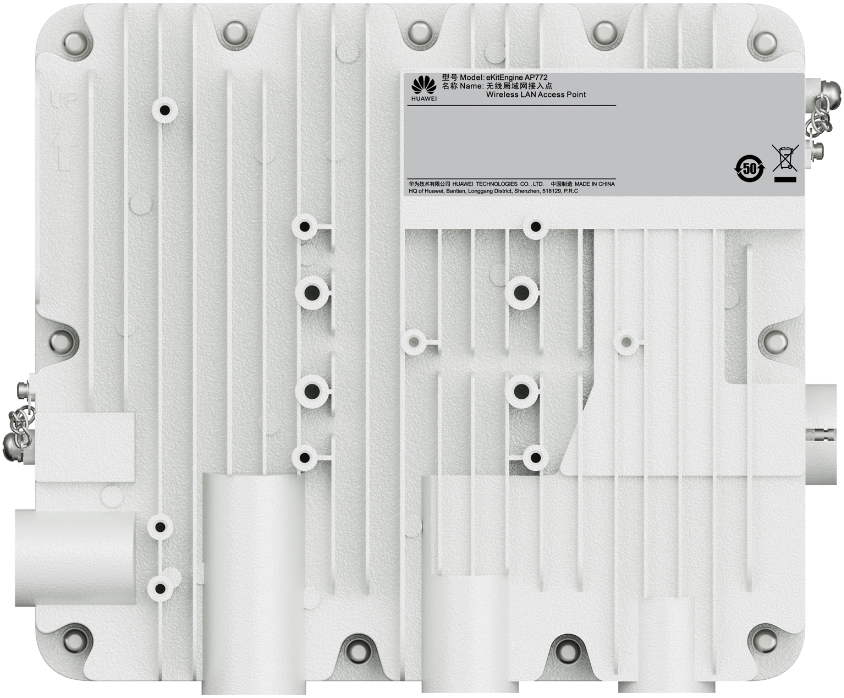

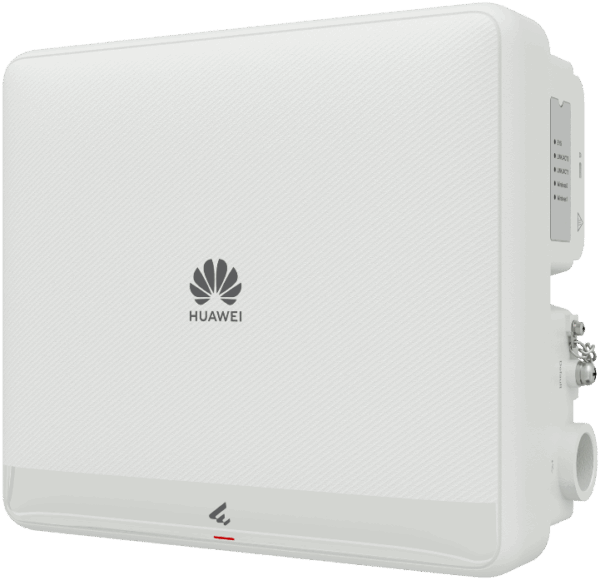

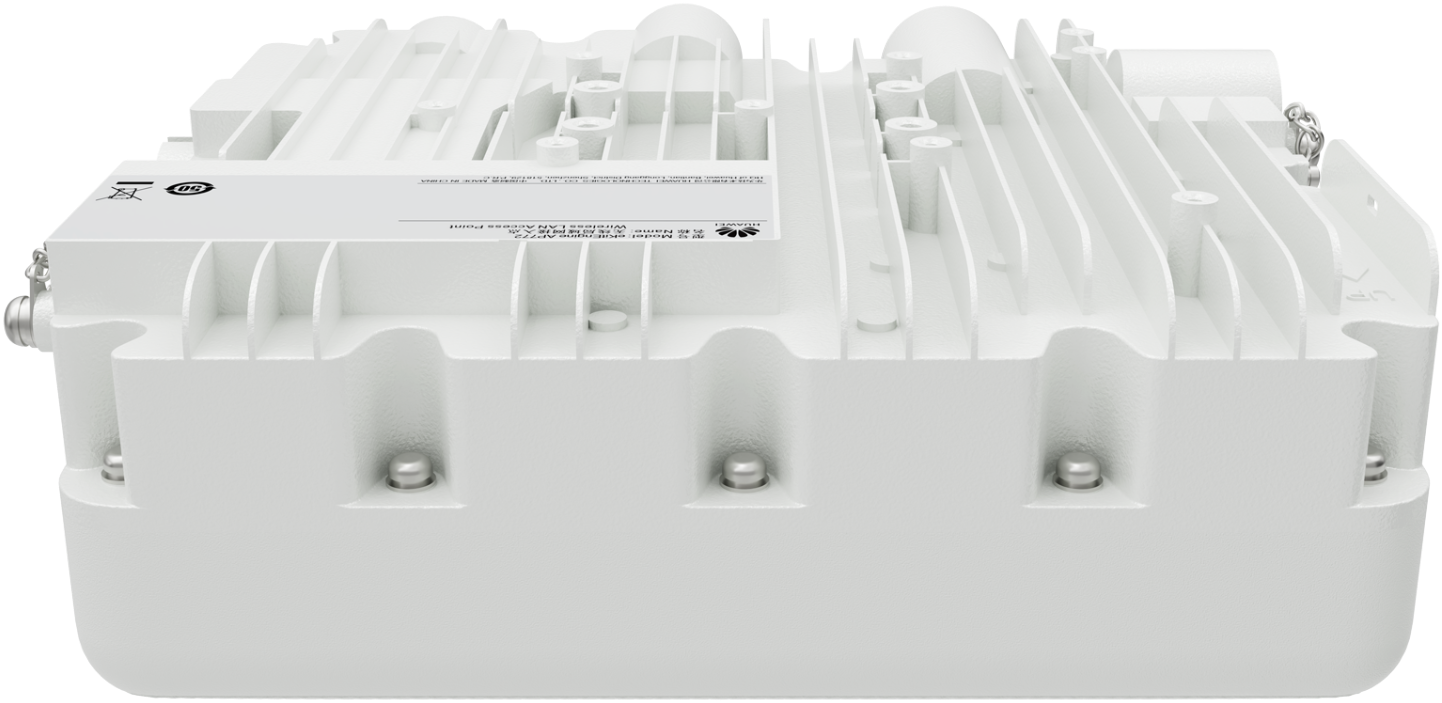

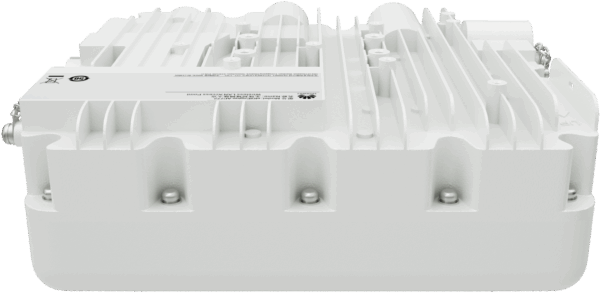

AP772
