| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax/be
5 GHz: 802.11a/n/ac/ac Wave 2/ax/be
5 GHz: 802.11a/n/ac/ac Wave 2/ax/be |
| Installation Type | Wall,Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod),Junction Box (86 mm/1-Gang 120 mm/Octagonal/2-Gang 120 mm) |
| Optimal Signal Distance (m) | 30 |
| Max Number of Access Users | 1024 |
| Recommended Number of Access Users | 180 |
| Device Rate | 7.89 Gbps |

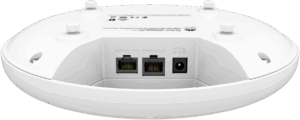

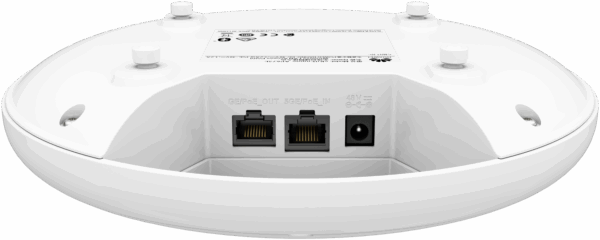

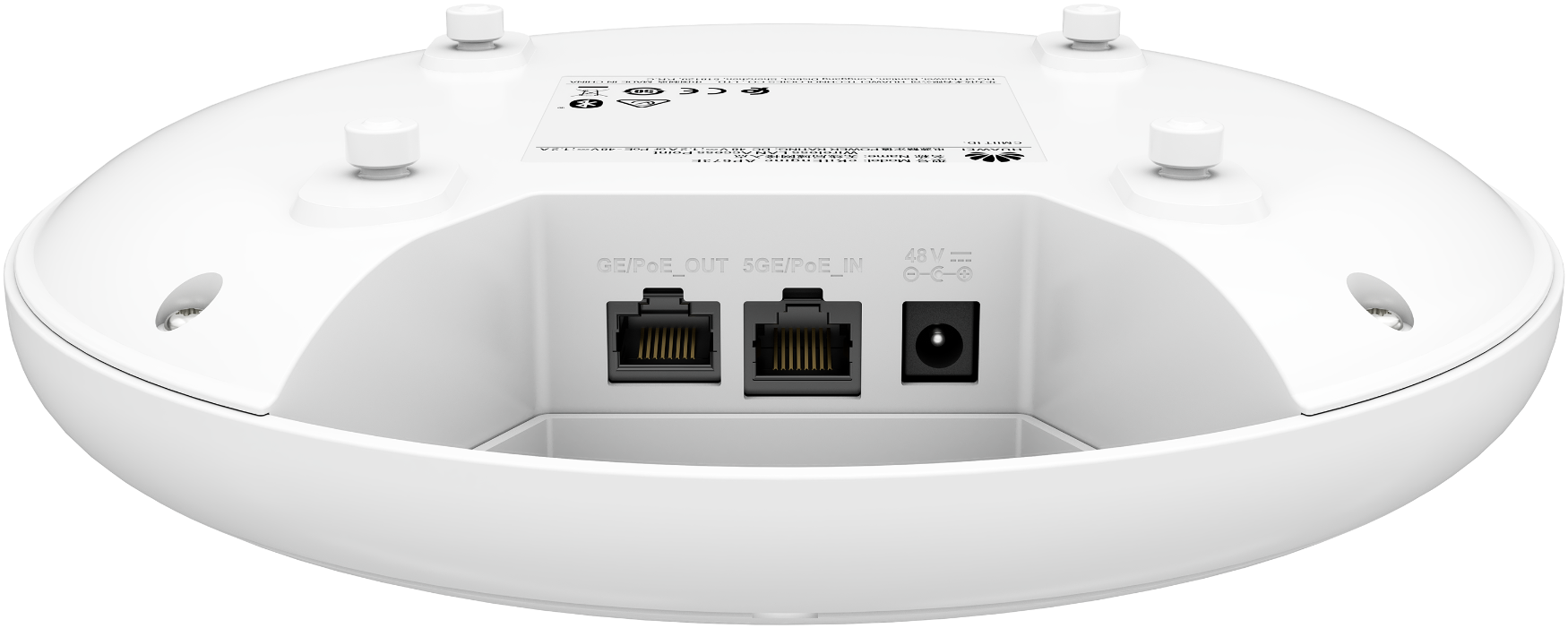

| Maximum number of physical ports on the entire device | 5GE (RJ45) x 1, 100M/1000M/2500M/5000M auto-sensing
GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Radio number | 3 |
| Maximum channel bandwidth [MHz] | Radio 0 (2.4 GHz): 40 MHz
Radio 1 (5 GHz-H): 80 MHz
Radio 2 (5 GHz-L): 160 MHz |
| Maximum transmit power | 2.4 GHz:
20 dBm/chain
23 dBm (combined power)
5 GHz (2x2):
20 dBm/chain
23 dBm (combined power)
5 GHz (4x4):
20 dBm/chain
26 dBm (combined power) |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2
Radio 1 (5 GHz-H): 2x2 (high frequency band: 5490–5850 MHz)
Radio 2 (5 GHz-L): 4x4 (low frequency band: 5150–5330MHz) |
| Maximum power consumption [W] | 22.3 (excluding USB and PoE out) |
| Input voltage range [V] | DC: 43.2 V to 57.6 V
PoE: 802.3bt/at/af |
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 220 mm x 45 mm (8.66 in. x 1.77 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 72 mm x 260 mm x 255 mm (2.83 in. x 10.24 in. x 10.04 in.) |
| Weight without packaging [kg(lb)] | 0.740 kg (1.63 lb) |
| Weight with packaging [kg(lb)] | 1.225 kg (2.7 lb) |
| Long-term operating temperature [°C(°F)] | –10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4 GHz:
4 dBi/chain (peak gain)
2 dBi (combined gain)
5 GHz-1:
5 dBi/chain (peak gain)
3 dBi (combined gain)
5 GHz-2:
5 dBi/chain (peak gain)
3 dBi (combined gain) |
| Operating frequency band | 2.4GHz,5GHz |

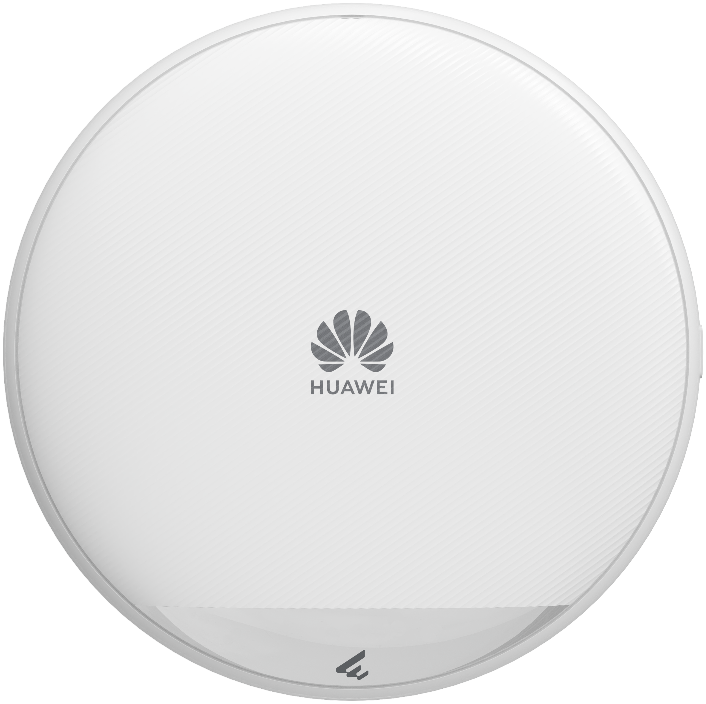

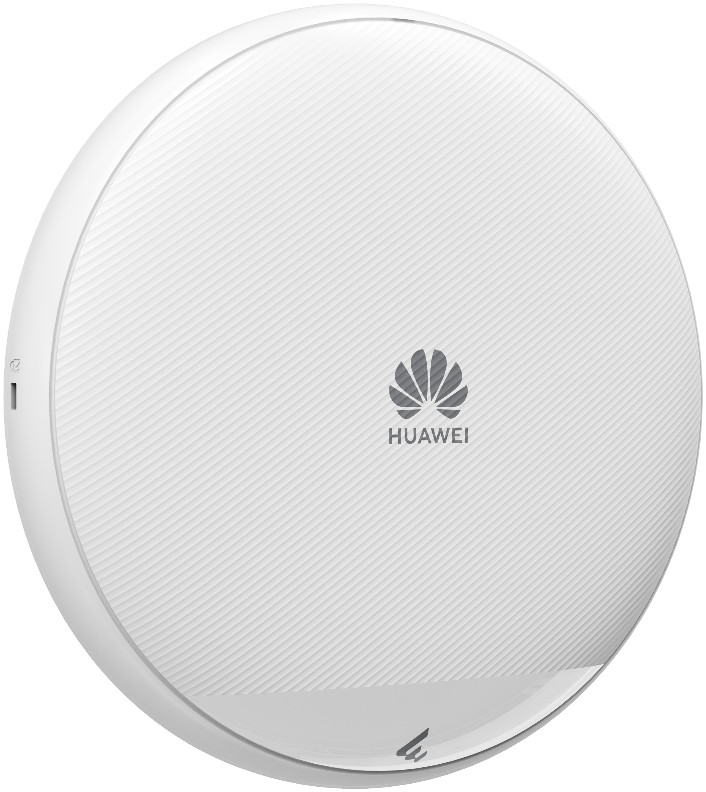

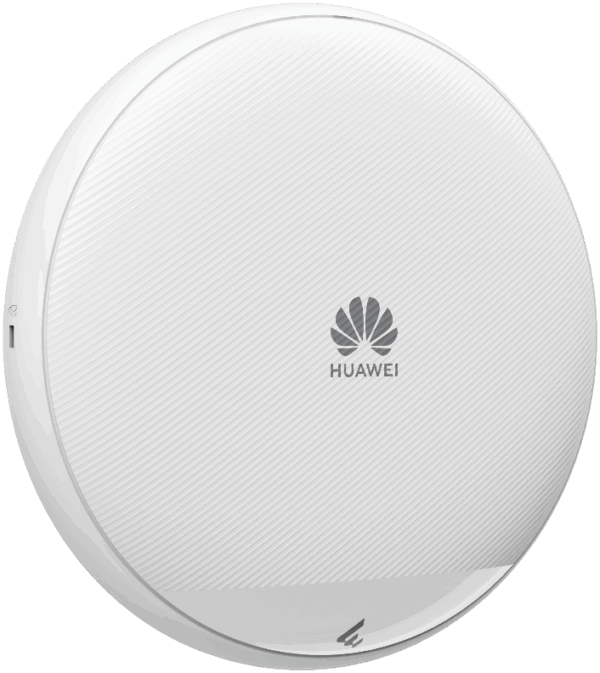

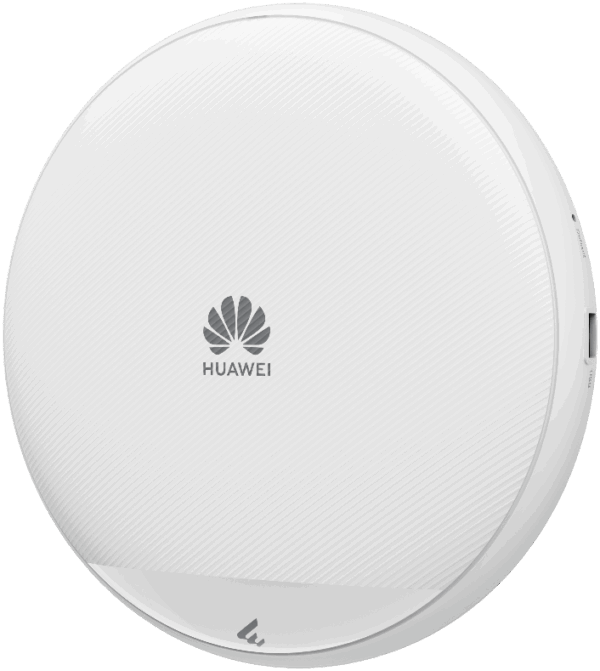

AP673E
