| Wi-Fi standard | 2.4 GHz: 802.11b/g/n/ax
5 GHz: 802.11a/n/ac/ac Wave 2/ax |

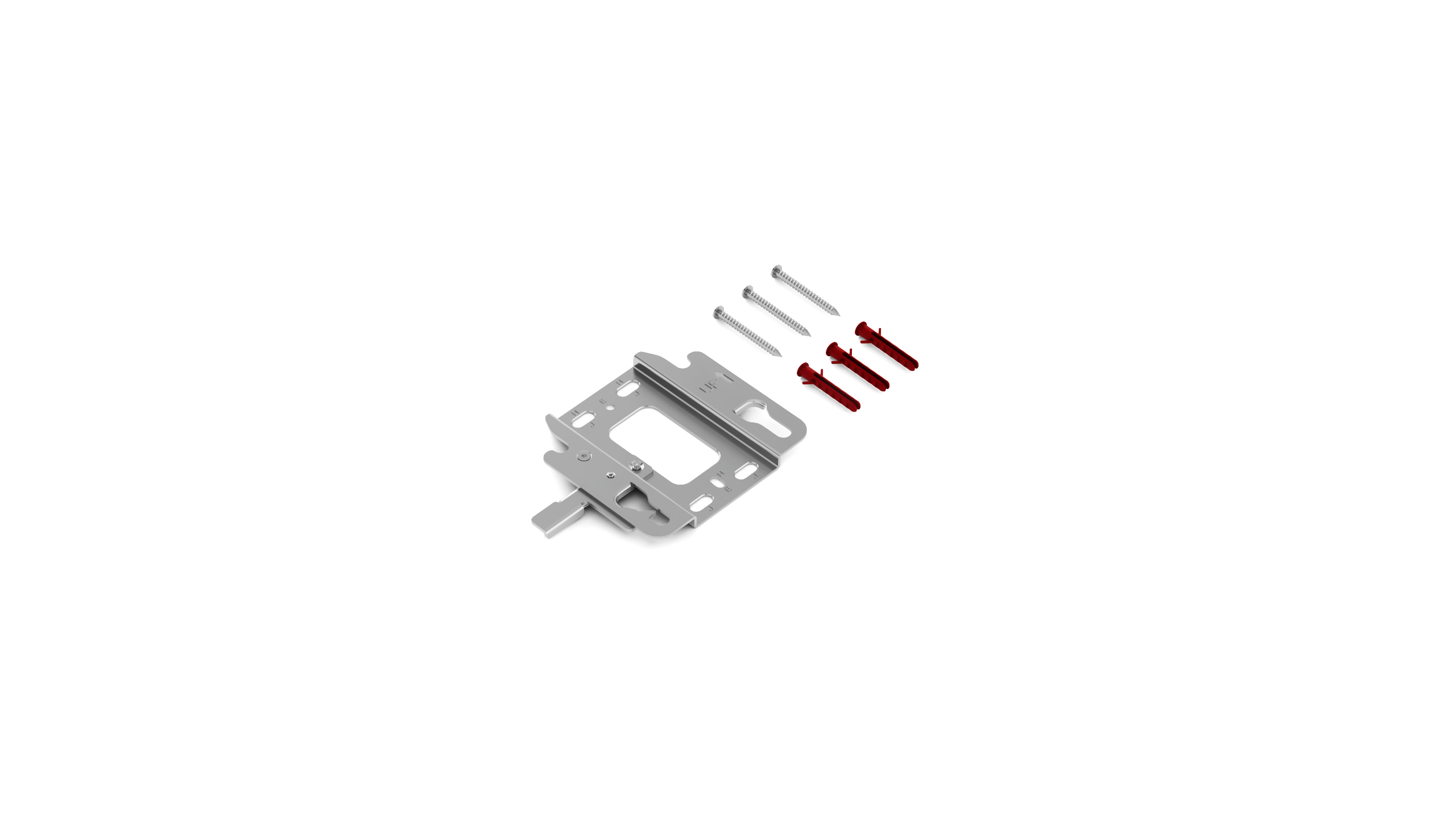

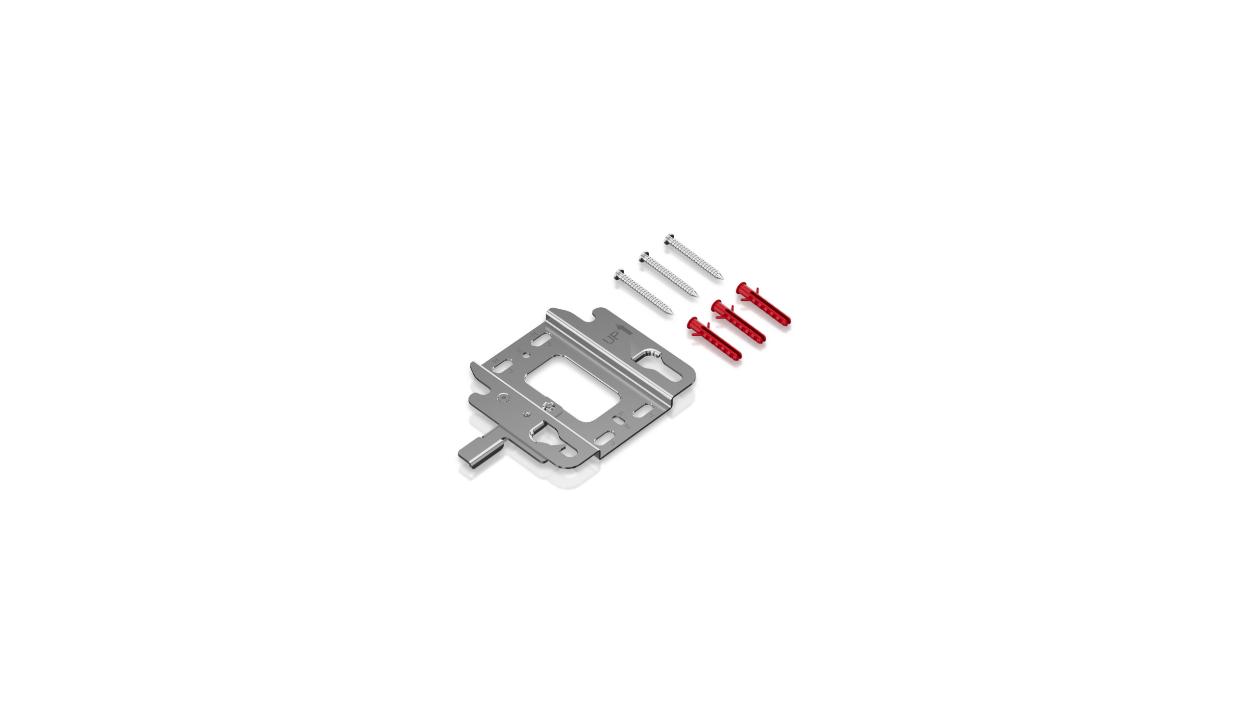

| Installation Type | Wall,Ceiling (Solid Wall/Gypsum Board/Spring Tee/Flat-Edge T-Rail/Channel Rail/Beam/Threaded Rod) |
| Optimal Signal Distance (m) | 20 |
| Max Number of Access Users | 128 |
| Recommended Number of Access Users | 100 |
| Device Rate | 2.975 Gbps |

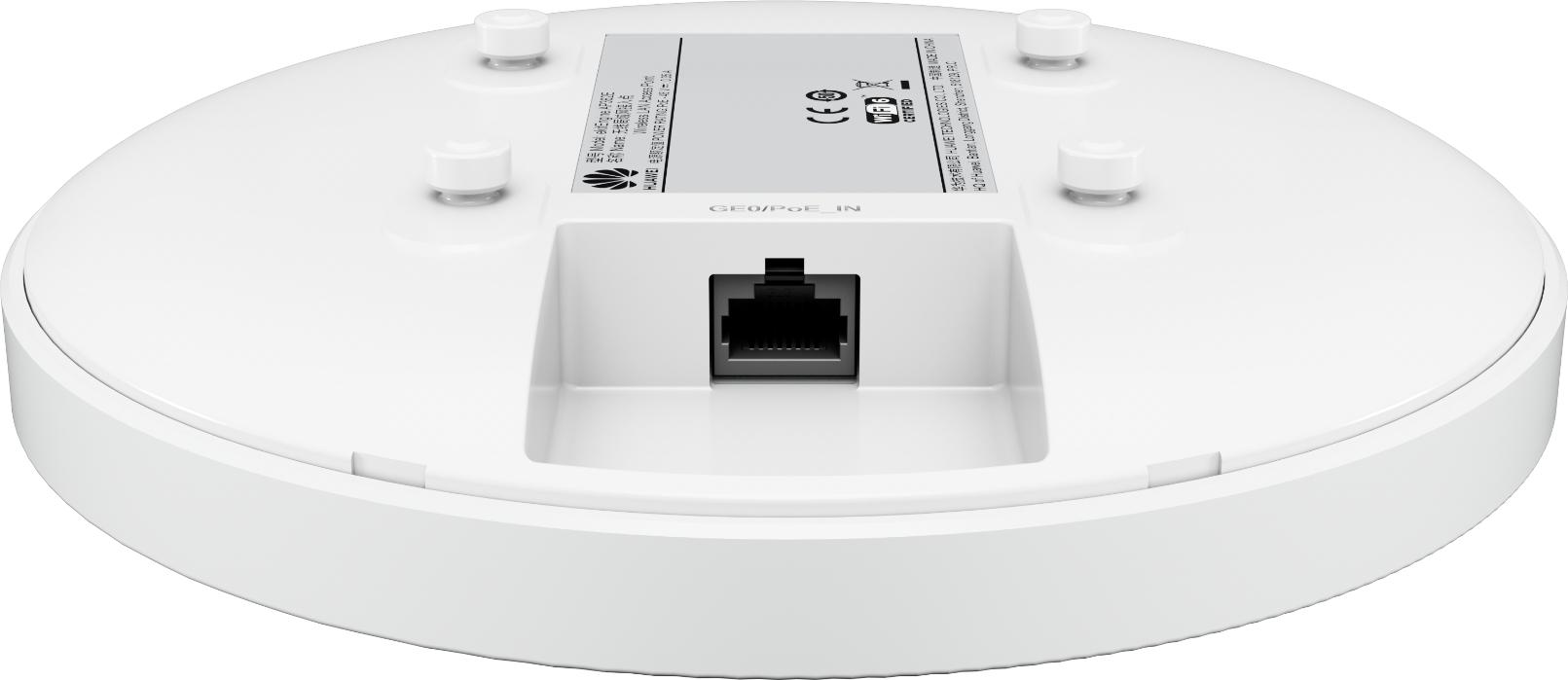

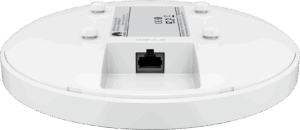

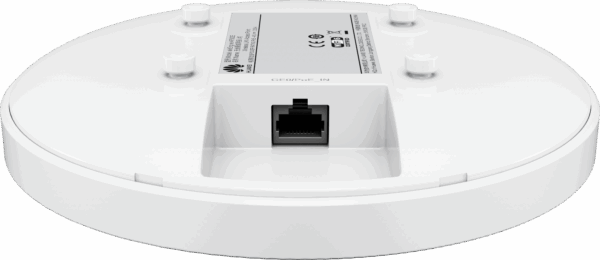

| Maximum number of physical ports on the entire device | GE (RJ45) x 1, 10M/100M/1000M auto-sensing |
| Radio number | 2 |
| Maximum channel bandwidth [MHz] | Radio 0 (2.4 GHz): 40 MHz
Radio 1 (5 GHz): 160 MHz |
| Maximum transmit power | 2.4G:
20 dBm/chain
23 dBm (combined power)
5G:
20 dBm/chain
23 dBm (combined power) |
| MIMO spatial streams | Radio 0 (2.4 GHz): 2x2
Radio 1 (5 GHz): 2x2 |
| Maximum power consumption [W] | 9.4 |
| Input voltage range [V] | PoE: 802.3af |
| Dimensions without packaging (H x W x D) [mm(in.)] | Diameter x depth: 180 mm x 35 mm (7.09 in. x 1.38 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 200 mm x 231 mm x 61 mm (7.87 in. x 9.09 in. x 2.40 in.) |
| Weight without packaging [kg(lb)] | 0.45 kg (0.99 lb) |
| Weight with packaging [kg(lb)] | 0.75 kg (1.65 lb) |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Radio interface | Built-in smart antennas |
| Antenna gain | 2.4G:
4 dBi/chain (peak)
2 dBi (combined gain)
5G:
5 dBi/chain (peak value)
3 dBi (combined gain) |
| Operating frequency band | 2.4GHz,5GHz |

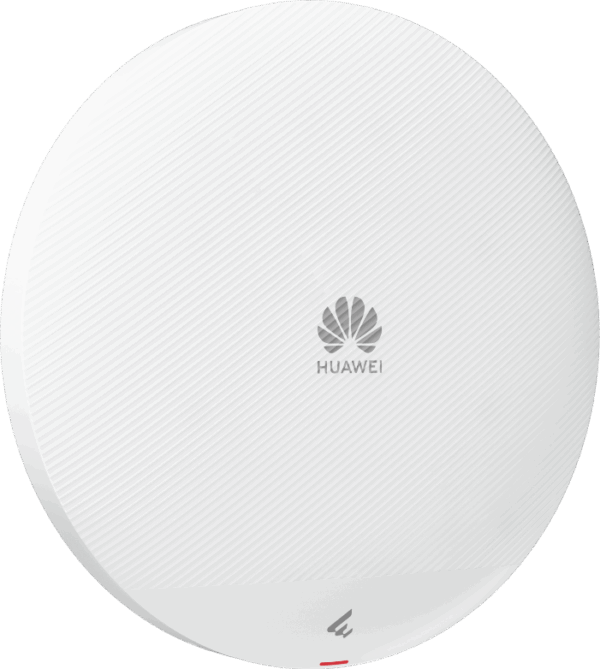

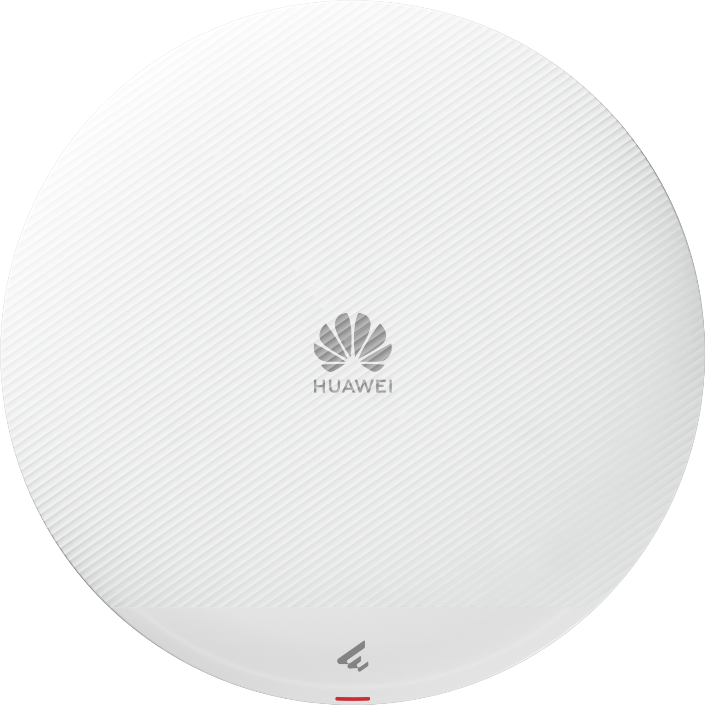

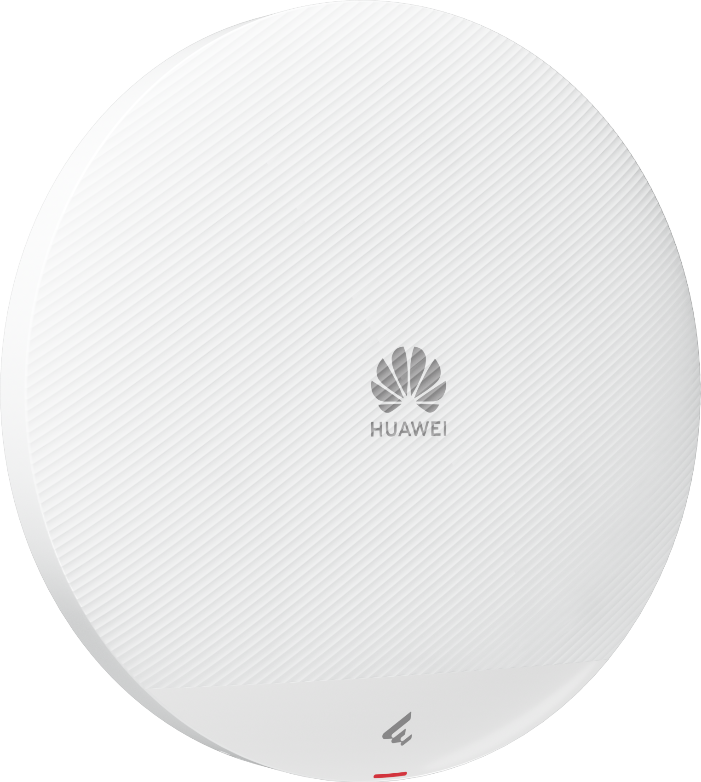

AP362E
